In this vignette, we explore a large number of simulation scenarios to illustrate the capabilities and features of RITHMS. These results were obtained on the dataset described below. Further explanations are given in the article. RITHMS can account for a variety of selection strategies and is adaptable to different genetic architectures. We found that simulated data accurately preserved key characteristics across generations, notably microbial diversity metrics, exhibited the expected behavior in terms and correlation between taxa and of modulation of vertical and horizontal transmission, response to environmental effects and the evolution of phenotypic values depending on selection strategy.

To visualise changes over generations, we will use a green gradient :

greens_pal <- c("#6df17c","#2ede41","#26c537","#1da42c","#157e21","#0E5e17")

General theme parameters for plots :

session_theme <- theme_minimal() + theme(panel.border = element_rect(colour= "white", fill = NA),
                                               panel.grid.major = element_line(colour = "#e3e3e3"),
                                               panel.grid.minor = element_line(colour = "#e9e9e9"),
                                               axis.title = element_text(size = 8),
                                               axis.text = element_text(size=7),
                                               plot.title = element_text(size = 12),
                                               legend.title = element_text(size = 7),
                                               legend.text = element_text(size = 7),
                                               legend.position = "none")
theme_set(session_theme)

Load data

The data matrix loaded is the count matrix of taxa (in columns) across individuals (in rows). In our toy dataset, a subset from Déru et al. 2020, there are 1845 species and 780 individuals coming from the conventional diet. Genotypes are encoded as 0,1,2 and reachable thanks to “population” attribute.

data("Deru")
founder_object <- Deru
founder_object$microbiome[1:5,1:5]
#>   OTU1 OTU2 OTU6793 OTU3 OTU4
#> 1   30  593       4  630  414
#> 2  254  275      62 1131  446
#> 3  181  487     164 1472  656
#> 4  469  665      45  640  328
#> 5  771  519      21  758  347
#MoBPS population structure, use get.geno() and generation index to extract genotypes
genotypes <- founder_object$population %>%
  get.geno(gen=1)

genotypes[1:5,1:5]
#>      M1_1 M2_1 M3_1 M4_1 M5_1
#> SNP1    2    2    1    1    2
#> SNP2    1    1    1    1    1
#> SNP3    2    2    2    2    2
#> SNP4    2    2    2    2    2
#> SNP5    2    2    1    1    2

Simulation reflects structure of microbiome

This section matches code of Figure 3 of the paper.

Produce intra- and inter-cluster (anti)correlations

Through β\beta matrix, its values and the overlapping of QTL, we’re able to induce correlations between taxa.

For this example, 4% of the taxa are under genetic control. The pairwise correlation matrix of taxa abundances are represented here. Taxa are sorted based on the cluster they belong to.

taxa_assign_g_small <- assign_taxa(founder_object,
                                   taxa_g = 0.04)

# Output is the assignation of each taxa to a cluster, 0 corresponds to taxa that are not under genetic control
taxa_assign_g_small[taxa_assign_g_small !=0 ]
#>  [1] 1 1 1 2 1 1 2 1 3 4 3 4 3 2 2 2 4 3 2 5 2 2 2 4 3 3 2 3 4 3 3 1 6 6 1 6 4 4
#> [39] 6 1 5 5 1 5 4 4 1 5 3 3 4 2 6 4 6 5 5 4 6 6 6 2 3 5 1 5 5 5 5 5 6 6 4 4 4 5
#> [77] 4 3 6
#> Levels: 0 1 2 3 4 5 6

Once you have these elements you’re able to call holo_simu().

noise = 0.6 #noise of the microbiome
effect.size = 0.3 #genetic effect size
lambda = 0.5 #same weight for vertical and horizontal transmission
dir = T #dirichlet sampling for ambient microbiome

generations_simu <- holo_simu(h2 = 0.25, #direct heritability
                              b2 = 0.25, #microbiability
                              founder_object = founder_object,
                              n_clust = taxa_assign_g_small,
                              n_ind = 500, #per generation
                              verbose = F,
                              noise.microbiome = noise,
                              effect.size = effect.size,
                              lambda = lambda,
                              dir = dir,
                              selection = F, #30% males and females sampled for next generation
                              seed = 333)

The β\beta matrix is reachable through metadata of holo_simu() output.

#Correlation intra-cluster for cluster under genetic control
beta <- generations_simu$metadata$Beta_matrix$matrix[taxa_assign_g_small != 0,]
cor_matrix <- cor(t(beta))
taxa_order <- taxa_assign_g_small[taxa_assign_g_small != 0] %>% order()
cor_matrix <- cor_matrix[taxa_order,taxa_order]

Then we’re able to build our Heatmap using ComplexHeatmap

pal <- colorRampPalette(RColorBrewer::brewer.pal(5,"Set1"))(length(taxa_assign_g_small[taxa_assign_g_small != 0] %>% unique()))
clus_col <- structure(pal, names = taxa_assign_g_small[taxa_assign_g_small != 0] %>% unique() %>% as.vector())

leftAnn = rowAnnotation(clust = taxa_assign_g_small[taxa_assign_g_small != 0] %>% sort(),
                        col = list(clust = clus_col),
                        show_annotation_name = F,
                        annotation_legend_param = list(clust = list(title = "Cluster ID",title_gp = gpar(fontsize = 5, fontface = "bold"), labels_gp = gpar(fontsize = 5, fontface = 'bold'))))
colAnn = HeatmapAnnotation(clust = taxa_assign_g_small[taxa_assign_g_small != 0] %>% sort(),
                        col = list(clust = clus_col),
                        show_annotation_name = F,
                        show_legend = FALSE)

col_fun = colorRamp2(c(min(cor_matrix), 0, max(cor_matrix)), c("blue", "white", "red"))

p1 <- grid.grabExpr(draw(Heatmap(cor_matrix,
        cluster_rows = F,
        cluster_columns = F,
        show_row_names = F,
        show_column_names = F,
        left_annotation = leftAnn,
        top_annotation = colAnn,
        col = col_fun,
        heatmap_legend_param = list(title = "Correlation", title_gp = gpar(fontsize = 5, fontface = "bold"), labels_gp = gpar(fontsize = 5, fontface = 'bold')))))

plot_grid(p1)

Modulate relative importance of vertical and horizontal transmission

The composition of the microbiota of individuals are given by this equation : λ𝐌d(i)(t−1)+(1−λ)𝐌a(i)(t)\lambda \boldsymbol{M}^{(t-1)}_{d(i)} + (1 - \lambda) \boldsymbol{M}^{(t)}_{a(i)}. Given this, λ=0\lambda = 0 corresponds to no vertical transmission. We’re looking here at the correlations between offspring α-diversity (from G2) and that of its mother (purple), father (orange) or ambient microbiota (green) for increasing values of λ.

set.seed(484)

#Change n_it to increase the accuracy of the function, n_it = 10 used in the article
n_it = 1
seed_value <- sample(c(100:9999),n_it)

params_df_it <- tibble::tibble(lambda = c(0,0.5,1)) %>%
  crossing(tibble(seed = seed_value)) %>%
  mutate(sim_ID = row_number(), .before = "lambda")

We perform the taxa assignation for all this small study.

taxa_assign_g <- assign_taxa(founder_object)

Then we have the following function that can be call in parallel for all the different scnarios in this test.

noise = 0.1
effect.size = 0.1
center_bg = T
dir = T

#Boxplot lambda vs diversity correlation with offspring

run_simulation_lambda <- function(i, it) {
      generations_simu <- holo_simu(h2 = 0.25,
                                    b2 = 0.25,
                                    founder_object = founder_object,
                                    n_clust = taxa_assign_g,
                                    n_ind = 500,
                                    verbose = F,
                                    noise.microbiome = noise,
                                    effect.size = effect.size,
                                    lambda = as.numeric(params_df_it[i,"lambda"]),
                                    dir = dir,
                                    selection = F,
                                    seed = as.numeric(params_df_it[i,"seed"]))

      #Richness of G2 offsprings
      current_div <- generations_simu$G2$microbiome %>%
        richness_from_abundances_gen(size_rmultinom = generations_simu$parameters$size_rmultinom)

      #Richness of offpsring's fathers
      previous_s_div <- sapply(generations_simu$G2$pedigree[,"father"],
                               function(x){generations_simu$G1$microbiome[,x]}) %>%
        richness_from_abundances_gen(size_rmultinom = generations_simu$parameters$size_rmultinom)

      #Richness of offpsring's mothers
      previous_d_div <- sapply(generations_simu$G2$pedigree[,"mother"],
                               function(x){generations_simu$G1$microbiome[,x]}) %>%
        richness_from_abundances_gen(size_rmultinom = generations_simu$parameters$size_rmultinom)

      #Richness of ambient microbiome
      ambient_div <- generations_simu$G2$mean_microbiome %>%
        richness_from_abundances_gen(size_rmultinom = generations_simu$parameters$size_rmultinom)


      tibble(lambda = list(as.numeric(params_df_it[i,"lambda"])),
             Mother = list(cor(current_div$Shannon,previous_d_div$Shannon)),
             Father = list(cor(current_div$Shannon,previous_s_div$Shannon)),
             Ambient = list(cor(current_div$Shannon,ambient_div$Shannon))
      )
  }

If you want to parallelize the code, you could use plan(multisession).

plan(sequential)
results <- future_map_dfr(
  seq_len(nrow(params_df_it)),
  function(i) {
    map_dfr(seq_len(n_it), ~ run_simulation_lambda(i, .x))
  }
)
plan(sequential)

The useful information of these simulations are the microbiomes, the pedigree and the ambient microbiome that could be extracted for each generation. We’re focusing on G2 here.

long_cor_gen <- results %>%
  mutate(lambda = unlist(lambda),
         Mother = unlist(Mother),
         Father = unlist(Father),
         Ambient = unlist(Ambient)) %>%
  pivot_longer(c("Mother","Father","Ambient"),
               names_to = "cor_type",
               values_to = "value")
lambda_label <- cbind(x = c(0,0.5,1),
                      y = c(0.8,0.2,0.8),
                      label = c("Ambient","Father","Mother")) %>% as.data.frame()
lambda_label$y <- as.numeric(lambda_label$y)

p3 <- long_cor_gen %>% summarise(value = mean(value), .by = c(lambda, cor_type)) |> ggplot(aes(x=as.factor(lambda),y=value,col=cor_type, group = cor_type)) +
  geom_line() +
  geom_point( alpha=0.8)  +
  geom_text_repel(data = lambda_label,
                  aes(x = x, y = y, label = label, color = label, group = NULL),
        direction = "y",
        show.legend = FALSE) +
  theme(legend.key.size = unit(0.25, 'cm')) +
  ylab("Correlation value") +
  xlab("Lambda") +
  labs(col = "Parents") +
  guides(shape = "none") +
  ylim(-0.2,1) +
  scale_y_continuous(
    breaks = seq(0,1,0.25),
    labels = seq(0,1,0.25)
  ) +
  scale_color_brewer(palette = "Dark2")

p3

Achieve a target distribution of taxa heritabilities

The function calibrate_gen_effect() is intended to guide the user in choosing an appropriate effect size to achieve a target distribution of taxa heritabilities. Build-in plots are in the function but we’ve used the output of the function in order to make a density plot of the distribution of taxa heritability for increasing genetic effect sizes (σβ×QTLo\sigma_{\beta}\times\sqrt{\text{QTL}_\text{o}}), shown above each curve.

out_data <- gen_effect_calibration(founder_object = founder_object,
                                   taxa_assign_g = taxa_assign_g,
                                   correlation = 0.5,
                                   effect.size = c(0.3,0.6,1),
                                   plot = F)
# Calculate density peaks
density_peaks <- out_data %>%
  group_by(effect.size) %>%
  summarise(
    peak = density(Heritability)$y[which.max(density(Heritability)$y)],
    peak_x = density(Heritability)$x[which.max(density(Heritability)$y)]
  )

  p2 <- out_data %>% ggplot(aes(x=Heritability,fill=as.factor(effect.size), label = as.factor(effect.size))) +
      geom_density(alpha=0.8, color = NA)+
      geom_text_repel(
        data = density_peaks,
        aes(x = peak_x, y = peak, label = effect.size, color = as.factor(effect.size)),
        nudge_x = 0.02,
        nudge_y = 0.3,
        direction = "y",
        show.legend = FALSE) +
      labs(x = "Taxa heritability",
           y = "Density",
           fill = "Genetic effect size")+
      theme(panel.background = element_rect(fill="white"),
            panel.grid.major = element_line(colour="#e3e3e3"),
            panel.grid.minor = element_line(colour="#e9e9e9"),
            axis.title = element_text(size = 8),
            axis.text = element_text(size=7),
            plot.title = element_text(size=7),
            legend.position = "none") +
    scale_fill_manual(values = c("#00AFBB", "#E7B800", "#FC4E07")) +
    scale_color_manual(values = c("#00AFBB", "#E7B800", "#FC4E07"))
 p2

Alpha-diversity remains stable across generations

In a neutral framework, without selection of environmental effect, we expect the α\alpha-diversity to be stable across generations. From holo_simu() output, the relative abundances of taxa, α\alpha-diversity indexes thanks to multinomial sampling in richness_from_abundances_gen() function.

h2 = 0.25
b2 = 0.25
generations_simu <- holo_simu(h2 = h2,
                              b2 = b2,
                              founder_object = founder_object,
                              n_clust = taxa_assign_g,
                              n_ind = 500,
                              verbose = F,
                              noise.microbiome = noise,
                              effect.size = effect.size,
                              lambda = 0.5,
                              dir = dir,
                              selection = F,
                              seed = 8082)
diversities_microbiomes <- generations_simu[-c(1,2)] %>% map(get_microbiomes) %>%
  map(richness_from_abundances_gen, size_rmultinom = generations_simu$parameters$size_rmultinom) |>
  bind_rows(.id = "Generation")

p4 <- ggplot(diversities_microbiomes,aes(x=Shannon,y=Generation,fill=Generation)) +
        geom_density_ridges(alpha=0.8) +
        theme(aspect.ratio = 1.5)+
  scale_fill_manual(values = rev(greens_pal))

p4
ggsave("../man/figures/ridges_shannon.png", p4, width = 9, height = 6)

Introduction of transient perturbations of the microbiota

In breeding and selection programs, it is essential to account for fixed environmental effects, given their strong role in modulating an individual’s phenotype. It is therefore important to verify that simulated transgenerational hologenomic data can correctly integrate such factors under a variety of plausible scenarios, such as short-term treatments or long-term diet effects.

To build this modulation, the user build outside the main function the θX\theta X product and choose precisely the values and the effect size given to each environmental effect. Dimensions of this product should match the founder_object$microbiome ones.

To evaluate our simulation on that part we’ve computed a multidimensional scaling (MDS) of microbial abundance data using Bray-Curtis distances and ridges plot of Shannon index values.

This section matches code of Figure 4 of the paper.

Sporadic environmental effect

Half the individuals at G1 are subject to a sporadic antibiotic treatment which affects all taxa.

#Construction of environmental effect before simulating the population
h2 = 0.25
b2 = 0.25
noise = 0.6
effect.size = 0.3
dir= T
n_ind = 500
lambda = 0.5

set.seed(42)
antibio <- rep(0, n_ind)
antibio_ind <- sample(1:n_ind, 250) #selecting index of individuals
antibio[antibio_ind] <- 1
X <- matrix(antibio, ncol = n_ind, nrow = 1)

theta <- rnorm(ncol(founder_object$microbiome),mean = 0, sd = 5) #sampling strong antibiotics effect
theta <- ifelse(theta > 0, -theta, theta) %>% matrix(ncol = 1, nrow = ncol(founder_object$microbiome)) #only negative values for all taxa

thetaX <- theta %*% X
generations_simu_env <- holo_simu(h2 = h2,
                                  b2 = b2,
                                  founder_object = founder_object,
                                  n_clust = taxa_assign_g,
                                  n_ind = n_ind,
                                  verbose = F,
                                  noise.microbiome = noise,
                                  effect.size = effect.size,
                                  lambda = lambda,
                                  dir = dir,
                                  selection = F,
                                  seed = 30,
                                  thetaX = thetaX,
                                  env_gen = c(T,F,F,F,F)) #on the five generations asked, we apply thetaX only on G1, not considering G0

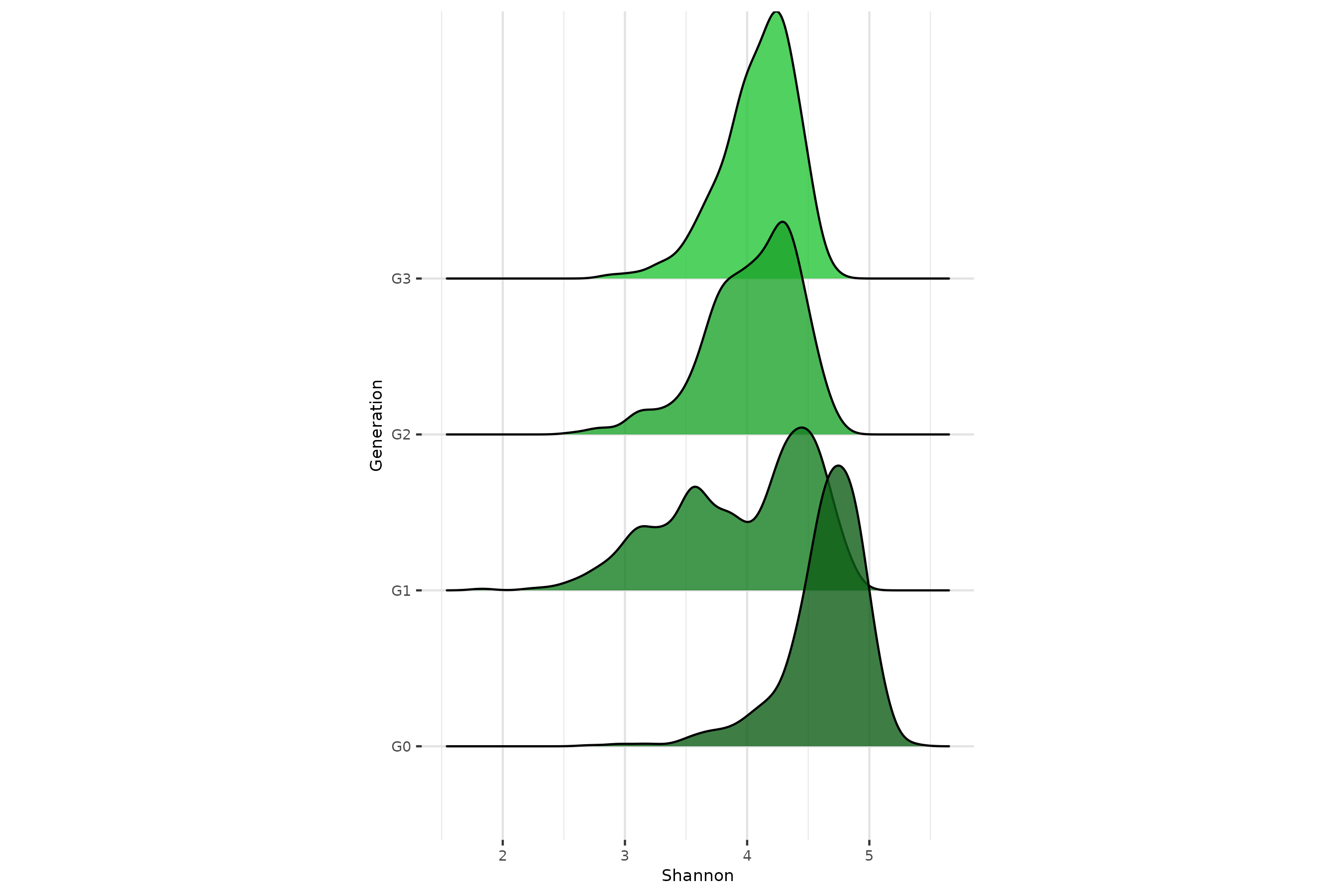

Diversity on antibiotic effect

Call to get_microbiomes() and richness_from_abundances_gen() to extract all useful metrics.

diversities_microbiomes <- generations_simu[-c(1,2)] %>% map(get_microbiomes) %>%
  map(richness_from_abundances_gen, size_rmultinom = generations_simu$parameters$size_rmultinom) |>
  bind_rows(.id = "Generation")

  p1 <- diversities_microbiomes %>% filter(!Generation %in% c("G4","G5")) %>%
    ggplot(aes(x=Shannon,y=Generation,fill=Generation)) +
    geom_density_ridges(alpha=0.8) +
    theme(aspect.ratio = 1.5)+
    scale_fill_manual(values = rev(greens_pal)[1:4])

  p1

MDS on antibiotic effect

microbiomes_all <- generations_simu_env[c(3,4,5,6)] %>% map(get_microbiomes, transpose = T, CLR = F) |> bind_rows(.id = "Generation")

antibio_vec <- rep(0, nrow(microbiomes_all))
id_antibio_ind <- rownames(microbiomes_all)[which(microbiomes_all$Generation == "G1")] %in% colnames((generations_simu_env$G1$microbiome))[which(X != 0)]
antibio_vec[which(microbiomes_all$Generation == "G1")[id_antibio_ind]] <- 1
metadata <- cbind(Generation = microbiomes_all$Generation, ID = rownames(microbiomes_all), antibio = antibio_vec) |> as.data.frame()
rownames(metadata) <- metadata$ID

Call to vegan package to compute Bray Curtis distance matrix.

dist_mat <- vegan::vegdist(x = microbiomes_all[-1],
                 method = "bray")

Call to phyloseq package to manipulate efficiently and compute MDS with ordinate() function.

physeq <- phyloseq(
  otu_table(t(microbiomes_all[,-1]), taxa_are_rows = TRUE),
  sample_data(metadata))

ord <- ordinate(physeq, method = "MDS", distance = dist_mat)

DF <- plot_ordination(physeq, ord, justDF = T)
p2 <- ggplot(data = DF, aes(x=DF[,1], y=DF[,2], color = antibio, shape=antibio)) +
    labs(x = "Axis 1",
         y = "Axis 2") +
  geom_point(alpha = 0.8) +
  theme(legend.key.size = unit(0.25, 'cm'),
        strip.text = element_text(color = "white", face = "bold")) +
  facet_wrap2(~Generation, nrow = 2, ncol = 2, strip = strip_themed(background_x = elem_list_rect(fill = rev(greens_pal)[1:4])))

p2

Sustained environmental effet

Starting from G1, half the individuals at each generation (blue triangles) are subject to a diet favoring two clusters of taxa.

h2 = 0.25
b2 = 0.25
noise = 0.6
effect.size = 0.3
dir= T
center_bg = T
n_ind = 500
lambda = 0.5

set.seed(56)
# Xi <- small portions of individuals
diet <- rep(0, n_ind)
diet_ind <- sample(1:n_ind, 250)
diet[diet_ind] <- 1
X <- matrix(diet, ncol = n_ind, nrow = 1)

theta <- rep(0, length(taxa_assign_g))
cluster_diet <- table(taxa_assign_g)[table(taxa_assign_g) > 10 & table(taxa_assign_g) < 30] %>% sample(3) %>% names() %>% as.numeric() #sample of clusters modulated by diet
theta[taxa_assign_g %in% cluster_diet] <- rnorm(sum(taxa_assign_g %in% cluster_diet ),mean = 0, sd = 2)
theta <- ifelse(theta < 0, -theta, theta) %>% matrix(ncol = 1, nrow = length(taxa_assign_g))#Only positive values for all taxa

thetaX <- theta %*% X
generations_simu_env <- holo_simu(h2 = h2,
                              b2 = b2,
                              founder_object = founder_object,
                              n_clust = taxa_assign_g,
                              n_ind = n_ind,
                              verbose = F,
                              noise.microbiome = noise,
                              effect.size = effect.size,
                              lambda = lambda,
                              dir = dir,
                              selection = F,
                              seed = 3042,
                              thetaX = thetaX,
                              env_gen = c(T,T,T,T,T)) #Applied on all generations

Diversity on diet effect

diversities_microbiomes <- generations_simu_env[c(3,4,5,6)] %>% map(get_microbiomes) %>%
  map(richness_from_abundances_gen, size_rmultinom = generations_simu$parameters$size_rmultinom) |>
  bind_rows(.id = "Generation")

  p4 <- ggplot(diversities_microbiomes,aes(x=Shannon,y=Generation,fill=Generation)) +
        geom_density_ridges(alpha=0.8) +
        theme(aspect.ratio = 1.5)+
        scale_fill_manual(values = rev(greens_pal)[1:4])
p4

MDS on diet effect

#Post-processing of the data
microbiomes_all <- generations_simu_env[c(3,4,5,6)] %>% map(get_microbiomes, transpose = T, CLR = F) |> bind_rows(.id = "Generation")

diet_vec <- rep(0, nrow(microbiomes_all))
diet_vec[which(microbiomes_all$Generation == "G1")[diet_ind]] <- 1
diet_vec[which(microbiomes_all$Generation == "G2")[diet_ind]] <- 1
diet_vec[which(microbiomes_all$Generation == "G3")[diet_ind]] <- 1
diet_vec[which(microbiomes_all$Generation == "G4")[diet_ind]] <- 1
diet_vec[which(microbiomes_all$Generation == "G5")[diet_ind]] <- 1

metadata <- cbind(Generation = microbiomes_all$Generation, ID = rownames(microbiomes_all), diet = diet_vec) |> as.data.frame()
rownames(metadata) <- metadata$ID
dist_mat <- vegan::vegdist(x = microbiomes_all[-1],
                 method = "bray")
physeq <- phyloseq(
  otu_table(t(microbiomes_all[,-1]), taxa_are_rows = TRUE),
  sample_data(metadata))

ord <- ordinate(physeq, method = "MDS", distance = dist_mat)
DF <- plot_ordination(physeq, ord, justDF = T)
p3 <- ggplot(data = DF, aes(x=DF[,1], y=DF[,2], color = diet, shape=diet)) +
    labs(x = "Axis 1",
         y = "Axis 2") +
  geom_point(alpha = 0.8) +
  theme(legend.key.size = unit(0.25, 'cm'),
        strip.text = element_text(color = "white", face = "bold")) +
  facet_wrap2(~Generation, nrow = 2, ncol = 2, strip = strip_themed(background_x = elem_list_rect(fill = rev(greens_pal)[1:4]))) +
  scale_fill_manual(values = rev(greens_pal)[1:4])
p3

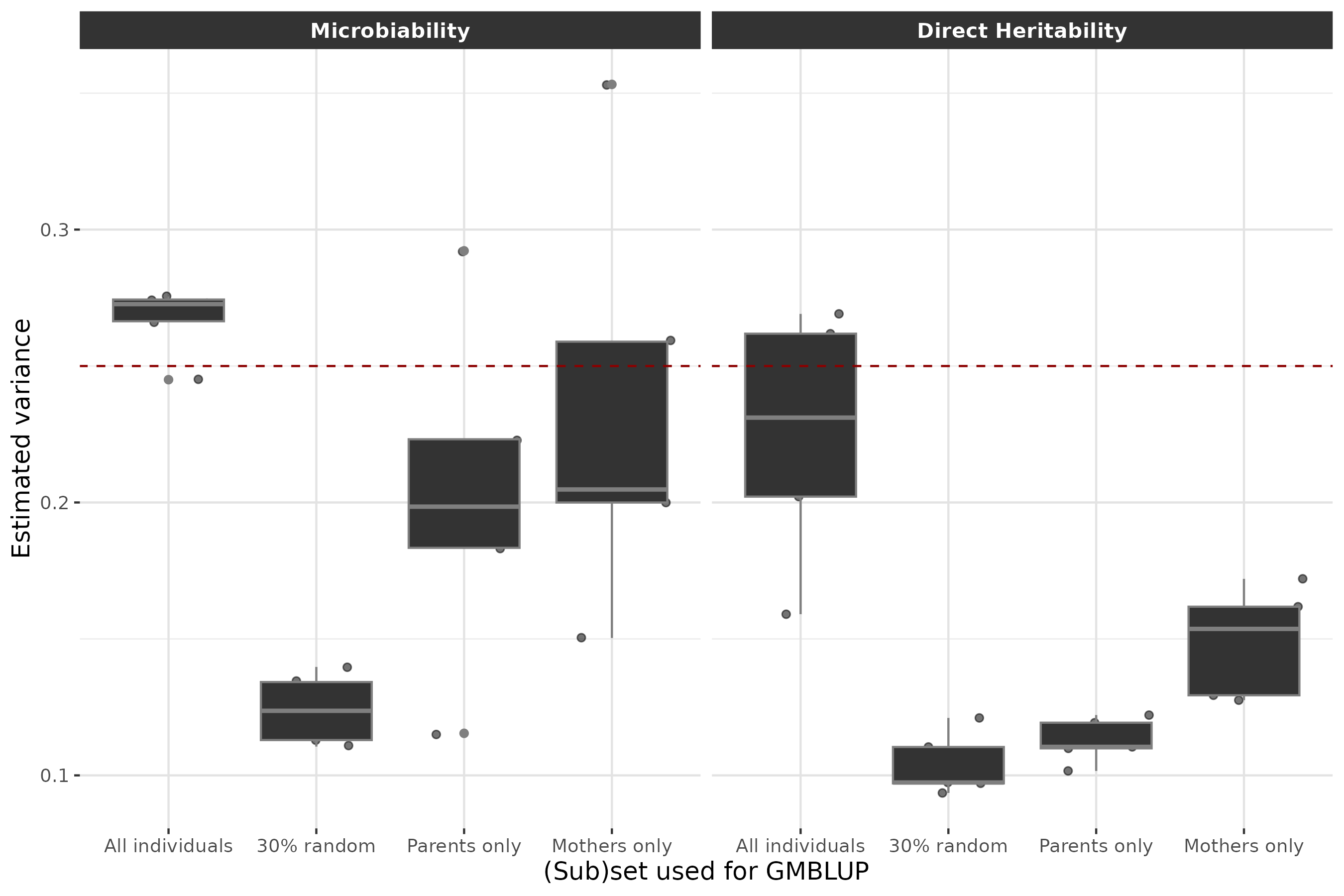

Fine selection of direct heritability, microbiability and selection schemes

In the absence of selection, we want to verify that the target values are reached and maintained across generations and then observe trends in phenotypic improvement as a function of four different selection strategies.

All the computation for both plots in this section are performed at the same time, the barplot is a subset of the facet grid.

This section matches code of Figure 5 of the paper.

Target values of direct heritability and microbiability are reached and maintained

# n_it = 50 was used to generate the figures of the article
n_it = 1
set.seed(42)
vec_seed <- sample(100:10000,n_it)
noise = 0.6
effect.size = 0.3
lambda = 0.1
dir = T

#For the exemple, not all values were computed, you can uncomment all the lines to obtain the complete figure.
params_df_it <- tibble::tribble(
  ~h2,  ~b2,
#  0.05, 0.05,
#  0.25, 0.05,
#  0.4,  0.05,
 # 0.05, 0.25,
  0.25, 0.25,
  0.4,  0.25,
#  0.05, 0.4,
 0.25, 0.4,
  0.4,  0.4
  ) |> crossing(tibble(`Selection Type` = c("GB", "G", "B", "None")),tibble(seed = vec_seed)) |>
  mutate(sim_ID = row_number(), .before = "h2")
params_df <- tibble::tribble(
  ~h2,  ~b2,
 # 0.05, 0.05,
 # 0.25, 0.05,
#  0.4,  0.05,
 # 0.05, 0.25,
  0.25, 0.25,
  0.4,  0.25,
#  0.05, 0.4,
  0.25, 0.4,
  0.4,  0.4
) |>
  crossing(tibble(`Selection Type` = c("GB", "G", "B", "Random"))) |>
  mutate(sim_ID = row_number(), .before = "h2")
run_simulation <- function(i, it) {
  start_time_it <- Sys.time()

  ram_result <- peakRAM({
    taxa_assign_g <- assign_taxa(founder_object)
    selection = if (params_df$`Selection Type`[i] == "Random") FALSE else TRUE
    generations_simu <- holo_simu(
      h2 = params_df$h2[i],
      b2 = params_df$b2[i],
      founder_object = founder_object,
      n_clust = taxa_assign_g,
      n_ind = 500,
      verbose = FALSE,
      noise.microbiome = noise,
      effect.size = effect.size,
      lambda = lambda,
      dir = dir,
      selection = selection,
      size_selection_F = if (selection == "FALSE") NULL else 0.3,
      size_selection_M = if (selection == "FALSE") NULL else 0.3,
      selection_type = if (params_df$`Selection Type`[i] == "Random") NULL else params_df$`Selection Type`[i],
      seed = vec_seed[it]
    )
  })

  gc() #clean memory

  phenotypes_all <- generations_simu[-c(1,2)] %>% map(get_phenotypes) |> bind_rows(.id = "Generation")

  tibble(mean_phenotypes = list(generations_simu[-c(1,2)] %>%
                                  map(get_mean_phenotypes)),
         metric_values = list(phenotypes_all %>%
                                group_by(Generation) %>%
                                summarise(h2 = var(gq)/var(y),
                                          b2 = var(gb)/var(y),
                                          e2 = 1 - var(gq)/var(y) - var(gb)/var(y)))
  )
}

If you want to parallelize the code, you could use plan(multisession).

plan(sequential)
results <- future_map_dfr(
  seq_len(nrow(params_df)),
  function(i) {
    map_dfr(seq_len(n_it), ~ run_simulation(i, .x))
  }
)
plan(sequential)
metrics_values <- results %>%
  bind_cols(params_df_it) %>%
  filter(h2 == 0.25,b2 == 0.25) %>% #for barplot, gather only results for h2 = b2 = 0.25
  select(metric_values) %>%
  unnest_wider(metric_values) %>%
  unnest_longer(c(Generation,h2,b2,e2)) %>%
  group_by(Generation) %>%
  summarize(h2 = mean(h2), b2 = mean(b2), e2=mean(e2)) %>%
  pivot_longer(cols = c(h2, b2, e2), names_to = "Metric", values_to = "Value")

metrics_values$Metric <- factor(metrics_values$Metric, levels = c("e2","b2","h2"))
colours <- setNames(c("#ce0104", "#0237AE", "#808080"),
                    c("b2", "h2", "e2"))

p2 <- metrics_values |> ggplot(aes(x=Generation, y = Value, fill = Metric))+
  geom_bar(stat = "identity") +
  ylab("Value") +
  theme(axis.text.y = element_text(vjust = seq(0, 1, length.out = 5)))+
  geom_hline(yintercept = 0.25, col="white", linetype = 2) +
  annotate("text", x = 3, y= 0.125, label=expression(bold(h[d]^2)), color = "white", size = 4) +
  geom_hline(yintercept = 0.5, col="white", linetype = 2) +
  annotate("text", x = 3, y= 0.375, label=expression(bold(b^2)), color = "white", size = 4) +
  annotate("text", x = 3, y= 0.75, label=expression(bold(e^2)), color = "white", size = 4) +
  scale_y_continuous(expand = expansion(0, 0)) +
  scale_fill_manual(values = colours)
p2

Mean phenotype change across generations according to selection strategy

mean_phenotypes <- results %>%
  select(mean_phenotypes) %>%
  bind_cols(params_df_it) %>%
  unnest_wider(mean_phenotypes)

phenotypes_longer <- mean_phenotypes %>%
  pivot_longer(cols = matches("^G"), values_to = "Y mean", names_to = "Generation") %>%
  summarise("Y sd"   = sd(`Y mean`),
            "Y mean" = mean(`Y mean`),
            .by = c(`Selection Type`, Generation, h2, b2)) |>
  mutate("Y mean" = `Y mean` - `Y mean`[Generation == "G0"], .by = c(`Selection Type`, h2, b2))

phenotypes_longer$`Selection Type` <- ifelse(phenotypes_longer$`Selection Type` == "GB","TBV", phenotypes_longer$`Selection Type`)

colours <- c(
  B = "#ce0104",
  G = "#0237AE",
  TBV = "#8123d9",
  None = "black"
)

custom_labeller <- labeller(
  b2 = as_labeller(function(x) paste0("b^2 == ", x), label_parsed),
  h2 = as_labeller(function(x) paste0("h[d]^2 == ", x), label_parsed)
)

labels <- phenotypes_longer |>
  filter(h2 == 0.25, b2 == 0.25, Generation == "G5") |>
  mutate(
    label = recode(`Selection Type`,
                   B = "BV[m]",
                   G = "BV[d]",
                   TBV = "BV[t]",
                   None = "Random"))
p1 <- phenotypes_longer |>
  ggplot(aes(x = Generation, y = `Y mean`, group = `Selection Type`, color = `Selection Type`)) +
  geom_point(size = 0.5) +
  geom_line(alpha = 0.5)  +
  geom_smooth(method = "lm", se = TRUE, linetype = 0, aes(fill = `Selection Type`), alpha = 0.2)+
  geom_text_repel(data = labels,
            aes(label = label), parse = T, hjust = -1, vjust = -0.8, direction = "y", segment.color = "grey80") +
  labs(y = "Mean phenotype change") +
  theme(panel.grid.major = element_line(colour="#e3e3e3"),
        panel.grid.minor.y = element_blank(),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank(),
        strip.text = element_text(size=12))  +
  facet_grid(rows = vars(h2),
             cols = vars(b2),
             drop = TRUE,
             labeller = custom_labeller,
             switch = "y") +
  scale_y_continuous(position = "right") +
  scale_color_manual(values = colours) +
  scale_fill_manual(values = colours) +
  coord_cartesian(clip = "off")
p1

For the selection criteria we have :
- Red line = Selection on microbiota breeding values,
- Blue line = Selection on direct breeding values,
- Purple line = Selection on total breeding values,
- Black line = Random selection

Selection index based on a combination of trait and diversity metrics

As a first demonstration of the usefulness of RITHMS, we consider a practical case study of complex breeding program with a multi-trait objective: maximizing phenotypic change while perserving microbial α\alpha-diversity.

This section matches code of Figure 6 of the paper.

#n_it = 25 was used to generate the figure of the article
n_it = 1
set.seed(40)
vec_seed <- sample(100:10000,n_it)
params_df <- tibble::tribble(
   ~div,  ~TBV,
   0,    1,
   1,    0,
   0.5, 0.5,
   0.8, 0.2,
   0.2, 0.8,
   0.7, 0.3,
   0.3, 0.7,
   0.4, 0.6,
   0.6, 0.4,
   0.1, 0.9,
   0.9, 0.1
  ) |> crossing(tibble(seed = vec_seed)) |>
  mutate(sim_ID = row_number(), .before = "div") %>%
  mutate(concatenated = glue("({div},{TBV})"))

noise = 0.6
effect.size = 0.3
lambda = 0.5

For each iteration, we look at the diversity and the phenotype values.

run_simulation_study <- function(i, it) {

  set.seed(as.numeric(params_df[i,4]))
  taxa_assign_g <- assign_taxa(founder_object)

  generations_simu <- holo_simu(h2 = 0.25,
                                b2 = 0.25,
                                founder_object = founder_object,
                                n_clust = taxa_assign_g,
                                n_ind = 500,
                                verbose = F,
                                noise.microbiome = noise,
                                effect.size = effect.size,
                                lambda = lambda,
                                selection = T,
                                dir = T,
                                size_selection_F = 0.3,
                                size_selection_M = 0.3,
                                selection_type = "div.GB",
                                w.param = c(as.numeric(params_df[i,2]), as.numeric(params_df[i,3])),
                                seed = as.numeric(params_df[i,4]))

  tibble(mean_phenotypes_y = list(generations_simu[-c(1,2)] %>%
                                    map(get_mean_phenotypes) %>%
                                    bind_rows(.id = "Generation")),
         diversities_microbiomes = list(generations_simu[-c(1,2)] %>%
                                          map(get_microbiomes) %>%
                                          map(richness_from_abundances_gen, size_rmultinom = generations_simu$parameters$size_rmultinom) |>
                                          map(get_mean_diversity) %>%
                                          bind_rows(.id = "Generation"))
         )

}

If you want to parallelize the code, you could use plan(multisession).

plan(sequential)
results <- future_map_dfr(
  seq_len(nrow(params_df)),
  function(i) {
    map_dfr(seq_len(n_it), ~ run_simulation_study(i, .x))
  }
)
plan(sequential)

We look at the differences for our two traits between the base population and the last generation but it could be any generation.

mean_phenotypes_y <- results$mean_phenotypes_y %>% bind_rows()
diversities_microbiomes <- results$diversities_microbiomes %>% bind_rows()
diff_y <- mean_phenotypes_y$G5 - mean_phenotypes_y$G0
diff_div <- diversities_microbiomes$G5 - diversities_microbiomes$G0

diff_data <- tibble(diff_y = diff_y,
                    diff_div = diff_div,
                    category = params_df$concatenated)

diff_data_concat <- diff_data %>% summarise(mean_div = mean(diff_div),
                                            mean_y = mean(diff_y),
                                            sd_div = (1.96 * sd(diff_div)/sqrt(n())),
                                            sd_y = (1.96 * sd(diff_y)/sqrt(n())),
                                            .by = c(category))
p <- diff_data %>%
  mutate(w = str_remove_all(category, "\\(|,.*") |> as.numeric()) |>
  ggplot(aes(y = diff_y, x = diff_div,
             colour = w
             )) +
  geom_point(alpha = 0.4, shape = 20, size = 3) +
  geom_point(data = diff_data_concat |> mutate(w = str_remove_all(category, "\\(|,.*") |> as.numeric()),
             aes(y = mean_y, x = mean_div),
             shape = 15, size = 5) +
  geom_line(data = diff_data_concat |>  mutate(w = str_remove_all(category, "\\(|,.*") |> as.numeric()),
            aes(y = mean_y, x = mean_div, group = 1), show.legend = FALSE) +
  geom_vline(xintercept = 0, linetype = 2, color = "darkgrey") +
  geom_hline(yintercept = 0, linetype = 2, color = "darkgrey") +
  theme(legend.key.size = unit(0.3, 'cm'),
    legend.title = element_text(size = 12, face = "bold"),
    legend.text = element_text(size = 10),
    legend.position = "inside",
    legend.position.inside = c(0.49, 0.02),
    legend.justification.inside = c(0.5, 0),
    legend.direction = "horizontal",
    legend.box = "horizontal",
  ) +
  labs(
    y = "Mean phenotype change (over 5 generations)",
    x = "Microbial diversity change (over 5 generations)",
    colour = expression(w[div])
  ) +
  scale_color_viridis_c(option = "D",
                        breaks = seq(0,1,0.1),
                        name = expression(w[div]),
                        labels = seq(0,1,0.1)) +
  coord_cartesian(clip = "off") +
  theme(legend.key.width = unit(25, "mm"),
        legend.background = element_rect(fill = "transparent")) +
  NULL

p

Future work

It would be interesting to extend the RITHMS model to :
(i) account for microbial interactions with a non-diagonal covariance matrix for the noise component σm\sigma_{m} of the taxa abundances,
(ii) allow for the inclusion of more complex environmental effects,
(iii) allow for the use of semi-complete, rather than fully paired, genomic and microbiota data to create the base population, which would enable RITHMS simulations to be calibrated on a datasets for which some samples lack genomic or microbiota data,
(iv) the use of RITHMS to alternative hologenomic datasets, notably for a variety of species and experimental designs, and additional use cases for the evaluation of complex breeding schemes.

For any ideas or collaboration relating to the package, feel free to contact :
